Product Details:
|
| Features: | Superior Wear-resistance And Impact Toughness | Type: | Sleeve |
|---|---|---|---|
| Material: | 100% Virgin Tungsten Carbide | Application: | Oil Field |
| Product Name: | Tungsten Carbide Sleeve Bushing | Finishing: | Polished |
| Highlight: | oilfield operations tungsten carbide bushing,Polished tungsten carbide bushings,Wear resistance tungsten carbide bushing |
||

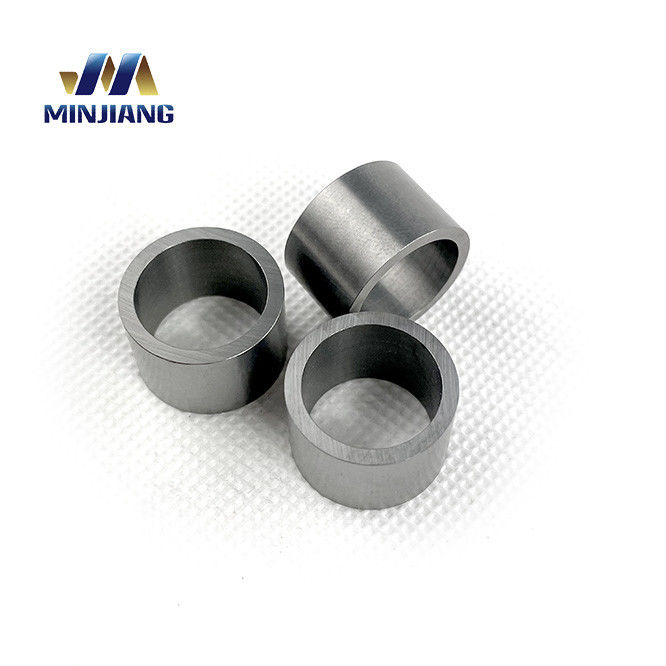

Precision Tungsten Carbide Polished Sleeves For Oil Tool
Introduction
Tungsten Carbide Sleeves are essential components for oilfield operations, offering robustness and strength. These cylindrical components are made from tungsten carbide, a hard and dense material that provides excellent wear-resistance. This makes them suitable for use in extreme temperatures and pressures, creating a secure seal that prevents liquid and gas leakage in oil wells. The sleeves also possess non-magnetic characteristics and a low coefficient of friction, making them ideal for high-pressure applications. Moreover, they feature outstanding corrosion resistance, making them an ideal choice for drilling, production, and storage operations.
| Grade | ISO Grade | Chemical Composition | Physical Properties | Applications | |||||||
| WC% | CO% | Density g/cm3(±0.1) | Hardness HRA(±0.5) | TRS Mpa(min) | Grain Size(μ m) | ||||||
| YG6 | K20 | 94 | 6 | 14.85-15.00 | 90.5-92 | 1800 | 1.2-1.6 | Carbide burr. | |||
| YG6X | K15 | 94 | 6 | 14.80-15.00 | 91.7-93 | 1600 | ＜1.0 | High wear resistance and higher, strength. Machining of chilled alloy cast irons and refractory alloy steel or finishing of common cast irons. | |||
| YG8 | K30 | 92 | 8 | 14.62-14.82 | 89.5-91 | 1900 | 1.2-1.6 | Wire drawing die and non-standard structure and mechanical component and valve ball. | |||
| YG9 | K40 | 91 | 9 | 14.40-14.60 | 89-90 | 1850 | 1.2-1.6 | Flow sleeves, bushings, rings. | |||
| YG9C | K40 | 91 | 9 | 14.50-14.90 | 87.5-89 | 1815 | 1.2-1.6 | Nozzles, for the petroleum. | |||
| YG11 | K40 | 89 | 11 | 14.35 | 89 | 3200 | 1.6-2.0 | Nozzle, buttons, hemisphere, drilling teeth for the petroleum industry. | |||
| YG11C | - | 89 | 11 | 14.20-14.40 | 87.5-89 | 2200 | 1.6-2.4 | Inserts for mining and high-pressure nozzles in the petroleum, chemical, and mechanic industries. | |||
| YG13 | - | 87 | 13 | 14.10-14.30 | 87.5-89 | 2500 | 1.6-2.0 | Sleeves and bushings. | |||
| YG13C | - | 87 | 13 | 14.05-14.25 | 85.8-87.3 | 2550 | 2.4-4.0 | Alloy teeth and brazing bits. | |||
Product Features
Non-magnetic properties: Non-magnetic properties refer to the absence of a magnetic field in a material or object. This property is beneficial in certain industries, such as the medical and electronics fields, as it allows the material or object to not be affected by magnetic fields.
Low coefficient of friction: Low coefficient of friction is the measure of the resistance of an object to move when it interacts with another surface. Materials with a low coefficient of friction are ideal for oilfield operations as they reduce the amount of energy needed to move objects through oil.
Ideal for oilfield operations: Materials with a low coefficient of friction, non-magnetic properties, and resistance to wear and corrosion are ideal for oilfield operations. These materials can reduce the energy needed to move objects through oil, prevent corrosion and wear on machinery, and provide a safe environment for workers.
Resistant to wear and corrosion: Materials that are resistant to wear and corrosion are beneficial for oilfield operations. These materials are able to withstand the harsh conditions found in oilfields, such as extreme temperatures, high pressure, and high concentrations of chemicals. They are also able to resist the effects of corrosion, which can cause damage to machinery and structures over time.
Company Objective
At Minjiang, we are passionate about delivering the highest quality products and services to our customers. Our commitment is to provide the most creative and cost-effective solutions to meet the demands of our clients. We take our responsibility of building strong relationships with our customers seriously and strive to provide exemplary customer service. Our knowledgeable and skilled experts are devoted to aiding our customers in finding the most optimum solutions at the most reasonable prices. We are firmly dedicated to striving to surpass our customers' expectations and offering a remarkable customer experience.
FAQ
1. Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 20-35 days if the goods are not in stock, it is according to quantity.
2. Q: How is the lifespan of Tungsten Carbide Sleeves?
A: The lifespan of tungsten carbide sleeves is typically very long. With proper care and maintenance, they can last for decades. However, their lifespan can be shortened by extreme temperatures, high pressures, and abrasive wear.
3. Q: Are the products high quality?
A: Yes. The raw material will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
