Product Details:
|
| Features: | Wear-resisting | Type: | Sleeve |
|---|---|---|---|
| Material: | 100% Virgin Tungsten Carbide | Application: | Oil Field |
| Product Name: | Tungsten Carbide Sleeve Bushing | Size: | OEM Accepted |
| Highlight: | Oil Field Tungsten Carbide Sleeves,Tungsten Carbide Plain Shaft Bearing,Carbide Plain Shaft Bearing |
||

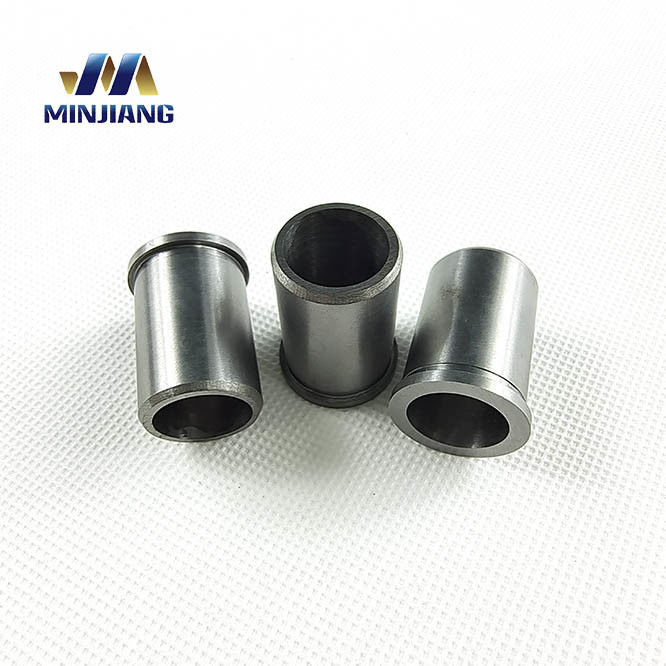

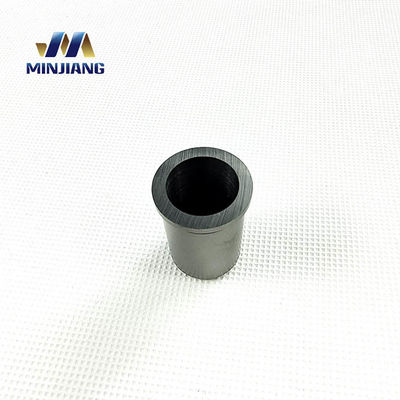

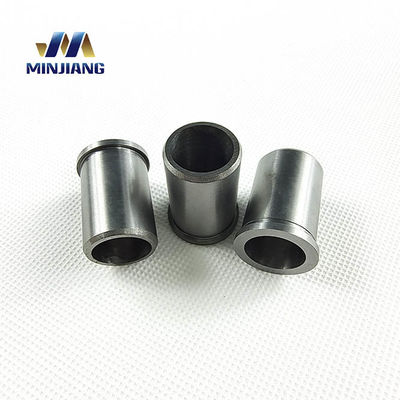

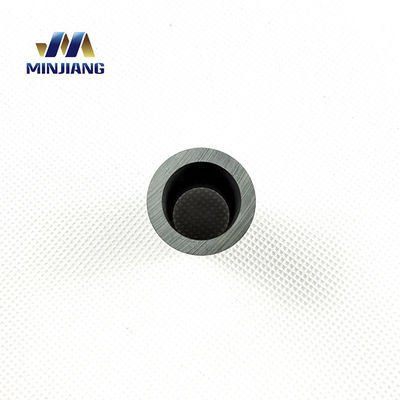

Custom Tungsten Carbide Plain Shaft Bearing Excellent Performance Sleeve Type
Description
Tungsten carbide sleeves are cylindrical pieces of tungsten carbide alloyed with cobalt, chromium, and/or nickel. They are strong, wear-resistant components used in many industrial applications. Tungsten carbide sleeves are used to protect surfaces from abrasion, corrosion, and wear due to extreme temperatures and harsh environmental conditions. They can be used in a variety of applications such as medical, automotive, aerospace, and military. Tungsten carbide sleeves are more durable than traditional metals, making them ideal for use in high-pressure, high-temperature environments. They are also non-magnetic and non-conductive, making them ideal for use in electrical systems. Tungsten carbide sleeves are also resistant to high pressures and temperatures, making them suitable for use in many industrial processes. Tungsten carbide sleeves are a cost-effective solution for many industrial applications, offering superior durability and performance.
| Grade | ISO Grade | Chemical Composition | Physical Properties | Applications | |||||||
| WC% | CO% | Density g/cm3(±0.1) | Hardness HRA(±0.5) | TRS Mpa(min) | Grain Size(μ m) | ||||||
| YG6 | K20 | 94 | 6 | 14.85-15.00 | 90.5-92 | 1800 | 1.2-1.6 | Carbide burr. | |||
| YG6X | K15 | 94 | 6 | 14.80-15.00 | 91.7-93 | 1600 | ＜1.0 | High wear resistance and higher, strength. Machining of chilled alloy cast irons and refractory alloy steel or finishing of common cast irons. | |||
| YG8 | K30 | 92 | 8 | 14.62-14.82 | 89.5-91 | 1900 | 1.2-1.6 | Wire drawing dies and non-standard structure and mechanical component and valve ball. | |||
| YG9 | K40 | 91 | 9 | 14.40-14.60 | 89-90 | 1850 | 1.2-1.6 | Flow sleeves, bushings, rings. | |||
| YG9C | K40 | 91 | 9 | 14.50-14.90 | 87.5-89 | 1815 | 1.2-1.6 | Nozzles, for the petroleum. | |||
| YG11 | K40 | 89 | 11 | 14.35 | 89 | 3200 | 1.6-2.0 | Nozzle, buttons, hemisphere, drilling teeth for the petroleum industry. | |||
| YG11C | - | 89 | 11 | 14.20-14.40 | 87.5-89 | 2200 | 1.6-2.4 | Inserts for mining and high-pressure nozzles in the petroleum, chemical, and mechanic industries. | |||
| YG13 | - | 87 | 13 | 14.10-14.30 | 87.5-89 | 2500 | 1.6-2.0 | Sleeves and bushings. | |||
| YG13C | - | 87 | 13 | 14.05-14.25 | 85.8-87.3 | 2550 | 2.4-4.0 | Alloy teeth and brazing bits. | |||
Competitive Pros
Related Products
Innovation As Always
At Minjiang, staying ahead and remaining competitive means continuously exploring new ways of working. Through exploring different technologies and approaches, it is possible to develop creative solutions that can help the company succeed. By encouraging creative thinking and remaining open to new ideas, Minjiang can identify opportunities to improve existing processes or create new products and services. This can result in a greater capacity for growth and success, as well as a competitive edge over other businesses. As the marketplace evolves, Minjiang must remain committed to innovation and remain open to new ideas and opportunities.
FAQ
1. Q: What payment methods do you accept?
A: We accept payment by bank transfer and Western Union.
2. Q: What is the benefit of using Tungsten Carbide Sleeves?
A: Tungsten carbide sleeves improved wear resistance, increased strength and durability, and improved corrosion resistance. They are also more dimensionally stable than other materials and can withstand higher temperatures, making them suitable for use in a wide range of applications.
3. Q: What is the best way to contact you?
A: You can contact us by email, telephone, or online chat.
4. Q: What is your minimum order quantity?
A: Our minimum order quantity will vary depending on the product.
