Product Details:
|
| Material: | 100% Virgin Tungsten Carbide | Type: | Machining Services |
|---|---|---|---|
| Size: | OEM Accepted | Application: | For Steel Surface Cuting |
| Precision: | High Precision | Grade: | According To Customer's Request |
| Highlight: | CVD Coating CNC Cutting Tools,Tungsten Carbide CNC Cutting Tools |
||

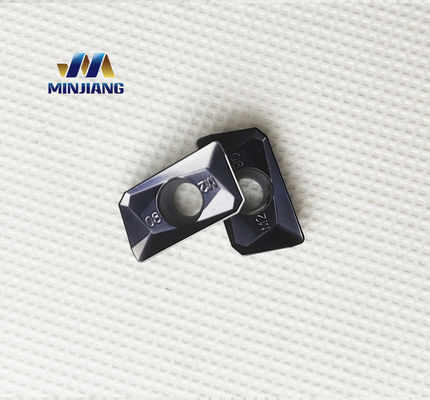

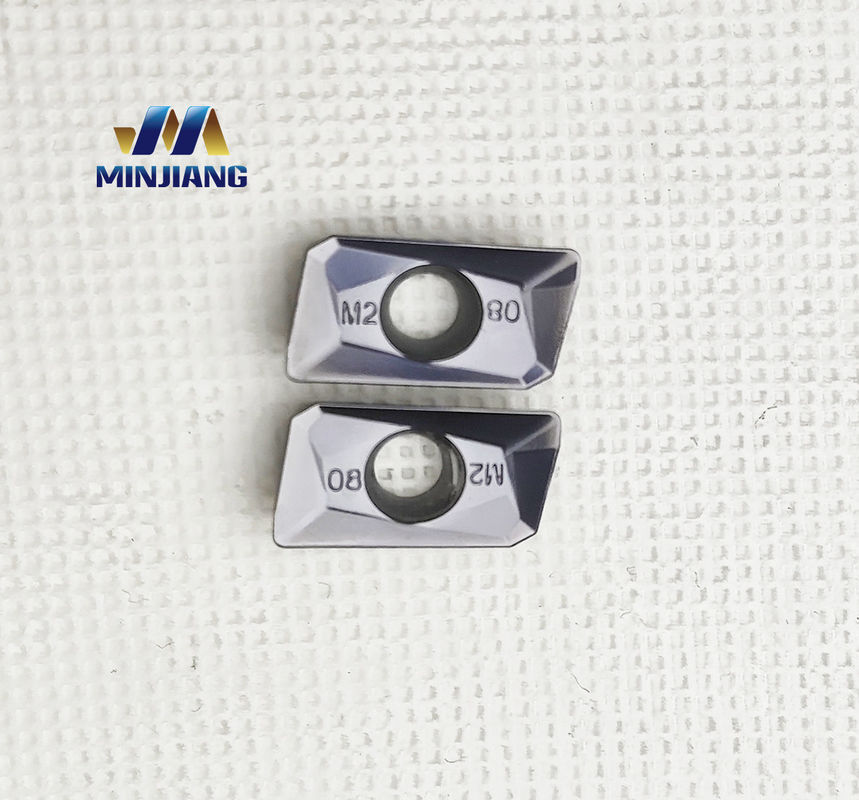

APMT 1604 Tungsten Carbide Milling Tools Insert Carbide CNC Cutting Tools
Tungsten Carbide is a popular and dependable material used widely in CNC cutting tools. This hard and versatile material is used to create a wide range of sharp tools, such as router bits, milling cutters, drills, reamers, and taps. Tungsten Carbide is especially suitable for high-accuracy and high-speed operations since it is highly resistant to wear and heat. Besides, tungsten carbide is also very durable and can maintain high cutting speeds. Moreover, its exceptional cutting potential ensures high accuracy and reproducibility.
Specifiction
| Product Name | Tungsten Carbide CNC Cutting Tools |
| Brand | Minjiang/HL |
| Model | APMT1604PDER-U2 |
| Coating | PVD/CVD |
| Material | 100% Virgin |
| Grade | MC115/MC118/MC118X/MC335/MC335X |
| Workpiece | Steel/Stainless steel/Alloy steel/Cast Iron |
| HRA | HRA 89-93 |
| MOQ | 10 pcs |
Types of Inserts
Material
According to the different binder contents, cemented carbide can be divided into different grades, such as YG, YT and YW . These grades have different performance characteristics and are suitable for different processing materials and processing conditions.
| Grade | WC(%) | TIC(%) | TaC/NbC(%) | Co(%) | Density(t/m³) | Thermal conductivity(W/m·K) | Hardness(HRA) | Flexural strength(/GPa) |
| YG3X | 97 | - | <0.5 | 3 | 14.9-15.3 | 87.92 | 91.5 | 1.08 |
| YG6X | 93.5 | - | 0.5 | 6 | 14.6-15.0 | 75.55 | 91 | 1.37 |
| YG6 | 94 | - | - | 6 | 14.6-15.0 | 75.55 | 89.75 | 1.42 |
| YG8 | 92 | - | - | 8 | 14.5-14.9 | 75.36 | 89 | 1.47 |
| YG10C | 90 | - | - | 10 | 14.3-14.9 | 75.36 | 88 | 1.72 |
| YT30 | 66 | 30 | - | 4 | 9.3-9.7 | 20.93 | 92.5 | 0.88 |
| YT15 | 79 | 15 | - | 6 |
11.0-11.7 |
33.49 | 91 | 1.13 |
| YT14 | 78 | 14 | - | 8 | 11.2-12.0 | 33.49 | 90.5 | 1.77 |
| YT5 | 85 | 5 | - | 10 | 12.5-13.2 | 62.80 | 89 | 1.37 |
| YG6A | 91 | - | 3 | 6 | 14.6-15.0 | - | 91.5 | 1.37 |
| YG8A | 91 | - | 1 | 8 | 14.5-14.9 | - | 98.5 | 1.47 |
| YW1 | 84 | - | 4 | 8 | 12.8-13.3 | - | 91.5 | 1.18 |
| YW2 | 82 | - | 4 | 8 | 12.6-13.0 | - | 90.5 | 1.32 |
Properties&Application
| Grade | Properties | Application |
| YG3X | Fine particle alloy with good wear resistance and poor impact toughness. | Finishing of cast iron, nonferrous metals, finishing of alloy steel, hardened steel, tungsten and molybdenum materials |
| YG6X | Fine-grained alloy with good wear resistance and impact toughness. | Semi-finishing and finishing of cast iron, chilled cast iron, alloy cast iron, heat-resistant steel and alloy steel. |
| YG6 | Good wear resistance and impact resistance. | Rough and semi-finishing of cast iron, non-ferrous metals and alloys, and non-metals. |
| YG8 | Higher strength, better impact resistance, poor wear resistance. | Rough machining of cast iron, non-ferrous metals and alloys, interrupted cutting is possible |
| YT30 | Good red hardness and wear resistance, but low strength, not impact resistant, prone to welding and grinding cracks. | Finishing of carbon steel and alloy steel during continuous cutting. |
| YT15 | Good wear resistance and red hardness, but poor impact resistance. | Semi-finishing and finishing of carbon steel and alloy steel during continuous cutting. |
| YT14 | Higher strength and impact toughness, but lower wear resistance and red hardness than YT15. | Roughing, semi-finishing and finishing of carbon steel and alloy steel during continuous cutting. |
| YT5 | Good strength and impact toughness, not easy to chip, but poor wear resistance. | Rough machining of carbon steel and alloy steel during continuous cutting, and can be used for continuous cutting. |
| YG6A | Fine-grained alloy with good wear resistance and strength. | Semi-finishing and finishing of hard cast iron, ductile iron, non-ferrous metals and alloys, high manganese steel, alloy steel, and hardened steel. |
| YG8A | Medium-grained alloy with good strength and poor red hardness. | Rough and semi-finishing of hard cast iron, ductile iron, white iron, non-ferrous metals, alloys and stainless steel. |
| YW1 | Good red hardness, wear resistance, impact resistance and versatility. | Semi-finishing and finishing of stainless steel, heat-resistant steel, high manganese steel and other difficult-to-process materials. |
| YW2 | Poor red hardness and wear resistance, but high strength and impact resistance. | Semi-finishing and finishing of stainless steel, heat-resistant steel, high manganese steel and other difficult-to-process materials. |
Application fields
Carbide turning inserts are widely used in the cutting of various metal materials, including:
At the same time, they are also used to cut difficult-to-process materials such as heat-resistant steel, stainless steel, high manganese steel and tool steel.
Manufacturing Process
FAQ
1. Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.Or it is 20-35 days if the goods are not in stock, it is according to quantity.
2. Q: What is your minimum order quantity?
A: Our minimum order quantity will vary depending on the product.
3. Q: What payment methods do you accept?
A: We accept payment by bank transfer and Western Union.
4. Q: What is the best way to contact you?
A: You can contact us by email, telephone or online chat.
