Product Details:
|
| Shape: | Rhombic | Packing: | 10pcs/box |
|---|---|---|---|
| Compatible Machine: | CNC Lathes, Centering Machines Etc | Workpiece: | P/M |
| Customized Support: | Customized Support: OEM, OD | Types: | Turning Tool, External Machining |
| Highlight: | Fine Machining Carbide Insert,Rough Machining Carbide Insert,Stainless Steel Carbide Insert |
||

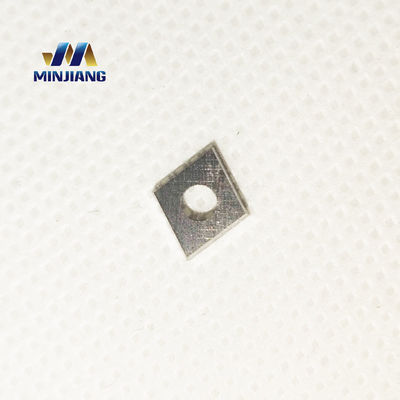

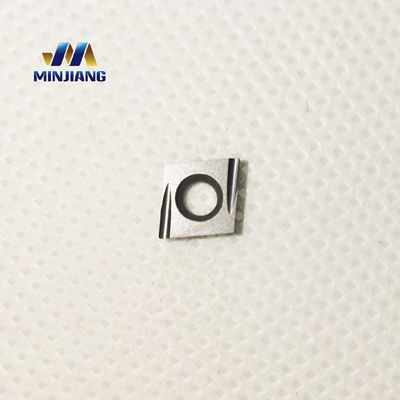

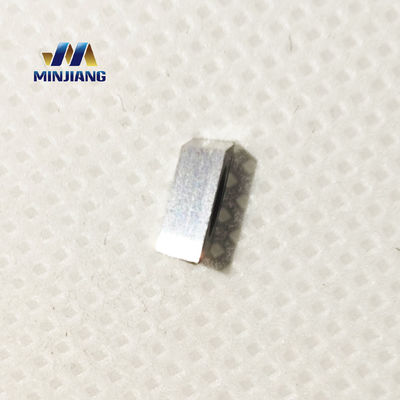

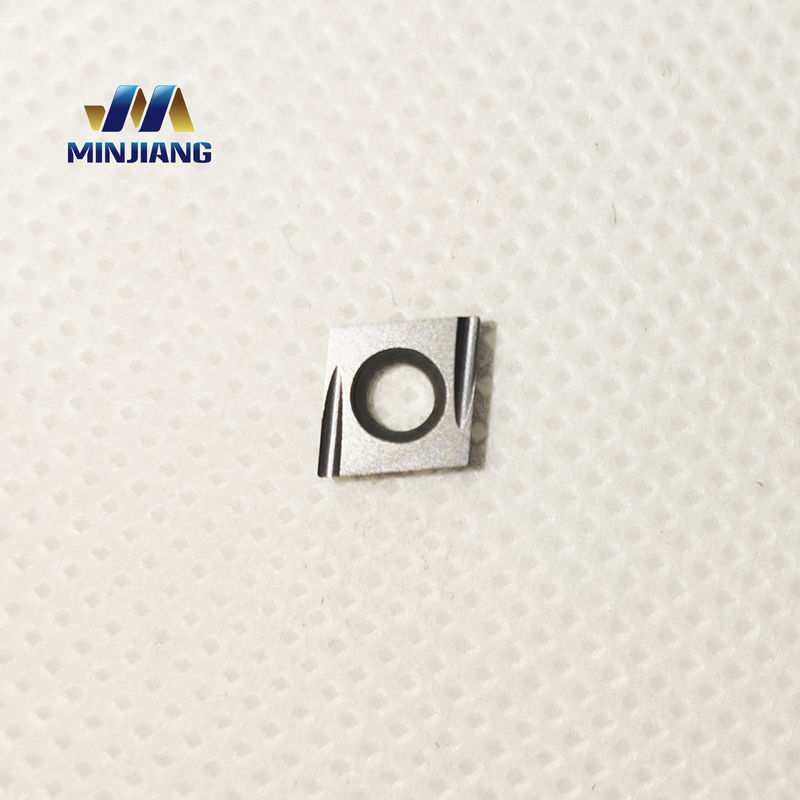

CNMG120404 Carbide insert for Rough and fine machining of stainless steel
Tungsten carbide CNC cutting tools are made from a blend of tungsten carbide and cobalt powders, and they are a popular choice in the machining industry due to their strength and durability. They can be used for a variety of applications, such as milling, drilling, reaming, and tapping. The tungsten carbide material is extremely hard and wear-resistant, allowing the tool to maintain its shape and provide a consistent cutting edge. Additionally, the tools feature a high tolerance for heat and can withstand high-speed feeds and depths of cut. They are also ideal for cutting difficult materials such as stainless steel, titanium, and aluminum alloys. CNC cutting tools made from tungsten carbide provides a precise, consistent cut and can increase productivity, reduce downtime, and improve the quality of the finished product.
Advantages
Related models&specification
| Model | IC | Thickness | Corner radius | Aperture |
| CNMG120404 | 12.7 | 4.76 | 0.4 | 5.16 |
| CNMG120408 | 12.7 | 4.76 |
0.8 |
5.16 |
Application fields
Material
| Grade | WC(%) | TIC(%) | TaC/NbC(%) | Co(%) | Density(t/m³) | Thermal conductivity(W/m·K) | Hardness(HRA) | Flexural strength(/GPa) |
| YG3X | 97 | - | <0.5 | 3 | 14.9-15.3 | 87.92 | 91.5 | 1.08 |
| YG6X | 93.5 | - | 0.5 | 6 | 14.6-15.0 | 75.55 | 91 | 1.37 |
| YG6 | 94 | - | - | 6 | 14.6-15.0 | 75.55 | 89.75 | 1.42 |
| YG8 | 92 | - | - | 8 | 14.5-14.9 | 75.36 | 89 | 1.47 |
| YG10C | 90 | - | - | 10 | 14.3-14.9 | 75.36 | 88 | 1.72 |
| YT30 | 66 | 30 | - | 4 | 9.3-9.7 | 20.93 | 92.5 | 0.88 |
| YT15 | 79 | 15 | - | 6 | 11.0-11.7 | 33.49 | 91 | 1.13 |
| YT14 | 78 | 14 | - | 8 | 11.2-12.0 | 33.49 | 90.5 | 1.77 |
| YT5 | 85 | 5 | - | 10 | 12.5-13.2 | 62.80 | 89 | 1.37 |
| YG6A | 91 | - | 3 | 6 | 14.6-15.0 | - | 91.5 | 1.37 |
| YG8A | 91 | - | 1 | 8 | 14.5-14.9 | - | 98.5 | 1.47 |
| YW1 | 84 | - | 4 | 8 | 12.8-13.3 | - | 91.5 | 1.18 |
| YW2 | 82 | - | 4 | 8 | 12.6-13.0 | - | 90.5 | 1.32 |
Company Profile
Chengdu Minjiang Precision Tool Corporation established in 1992 as a high-tech private enterprise, has deep roots in the precision cutting and carbide wear-resistant parts industry. Boasting a professional team of over 200 experts, we operate within a state-of-the-art 10,000-square-meter production base equipped with an integrated production and testing system. Renowned for our innovative R&D capabilities, we efficiently deliver top-quality products and services. With ISO9001:2015 certification, our commitment to excellence is guaranteed. Our product line encompasses CNC carbide cutting tools, oil pipe thread cutters, and customized non-standard items, all offered at highly competitive prices. Minjiang Precision Tools is dedicated to our customers, continuously providing outstanding products and services centered around their needs.
