Product Details:
|
| Type: | CNC Cutting Tools | Grade: | According To Customer's Request |
|---|---|---|---|
| Surface Finish: | Polished | Material: | Tungsten Carbide |
| Hardness: | HRA 91.8-92.5 | Size: | OEM Accepted |
| Highlight: | Cast Iron turning tool,Tungsten Carbide turning tool,finishing turning tool |
||

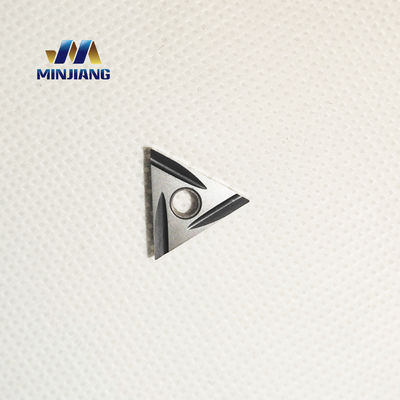

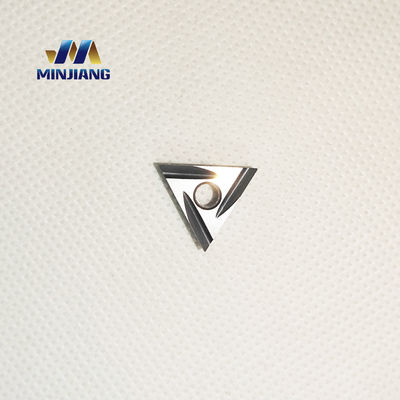

TNMG160404 Tungsten Carbide turning tool for For finishing and semi-finishing of cast iron
Tungsten Carbide CNC Cutting Tools are the perfect choice for machining a variety of materials. These tools are made from a combination of tungsten carbide and cobalt, making them extremely hard and durable. The tools also have a high resistance to abrasion and wear, making them ideal for cutting soft to medium-hard materials. Their high-temperature tolerance means that they are suitable for machining at higher temperatures without loss of performance. CNC cutting tools are used for precision machining operations, such as drilling, milling, reaming, and tapping. They can be used for a variety of materials, including steel, aluminum, brass, and titanium, making them a popular choice for machinists. The tools are also available in a variety of sizes, shapes, and angles, allowing for maximum versatility and accuracy. Tungsten Carbide CNC Cutting Tools is an excellent choice for the machinist looking for reliable and precise results.
Specifiction
| Product Name | Tungsten Carbide CNC Cutting Tools |
| Brand | Minjiang/HL |
| Model | TT43R60005 |
| Coating | PVD/CVD |
| Material | 100% Virgin |
| Grade | MC115/MC118/MC118X/MC335/MC335X |
| Workpiece | Steel/Stainless steel/Alloy steel/Cast iron |
| HRA | HRA 89-93 |
| MOQ | 10 pcs |
Material
According to the different binder contents, cemented carbide can be divided into different grades, such as YG, YT and YW . These grades have different performance characteristics and are suitable for different processing materials and processing conditions.
| Grade | WC(%) | TIC(%) | TaC/NbC(%) | Co(%) | Density(t/m³) | Thermal conductivity(W/m·K) | Hardness(HRA) | Flexural strength(/GPa) |
| YG3X | 97 | - | <0.5 | 3 | 14.9-15.3 | 87.92 | 91.5 | 1.08 |
| YG6X | 93.5 | - | 0.5 | 6 | 14.6-15.0 | 75.55 | 91 | 1.37 |
| YG6 | 94 | - | - | 6 | 14.6-15.0 | 75.55 | 89.75 | 1.42 |
| YG8 | 92 | - | - | 8 | 14.5-14.9 | 75.36 | 89 | 1.47 |
| YG10C | 90 | - | - | 10 | 14.3-14.9 | 75.36 | 88 | 1.72 |
| YT30 | 66 | 30 | - | 4 | 9.3-9.7 | 20.93 | 92.5 | 0.88 |
| YT15 | 79 | 15 | - | 6 | 11.0-11.7 | 33.49 | 91 | 1.13 |
| YT14 | 78 | 14 | - | 8 | 11.2-12.0 | 33.49 | 90.5 | 1.77 |
| YT5 | 85 | 5 | - | 10 | 12.5-13.2 | 62.80 | 89 | 1.37 |
| YG6A | 91 | - | 3 | 6 | 14.6-15.0 | - | 91.5 | 1.37 |
| YG8A | 91 | - | 1 | 8 | 14.5-14.9 | - | 98.5 | 1.47 |
| YW1 | 84 | - | 4 | 8 | 12.8-13.3 | - | 91.5 | 1.18 |
| YW2 | 82 | - | 4 | 8 | 12.6-13.0 | - | 90.5 | 1.32 |
Related models&specifications
| Model | IC | Thickness | Nose radius |
| TNMG160404 | 9.525 | 4.76 | 0.4 |
| TNMG160408 | 9.525 | 4.76 | 0.8 |
| TNMG160412 | 9.525 | 4.76 | 1.2 |
| TNMG220408 | 12.7 | 4.76 |
0.8 |
| TNMG220412 | 12.7 | 4.76 | 1.2 |
| TNMG220416 | 12.7 |
4.76 |
1.6 |
Product Advantages
High Hardness and Wear Resistance: Tungsten carbide has a high hardness level and excellent wear resistance, making it ideal for use in cutting tools. This means that tungsten carbide cutting tools can last much longer than traditional steel tools, resulting in significant cost savings.
Excellent Toughness: Tungsten carbide is also known for its excellent toughness, which means it can withstand high stress and impact loads. This makes it ideal for use in cutting tools that need to withstand heavy usage and challenging cutting conditions.
High Thermal Conductivity: Tungsten carbide has a high thermal conductivity, which means that it can dissipate heat generated during the cutting process effectively. This property reduces the risk of damage to the cutting edge and ensures longer tool life.
FAQ
1. Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
2. Q: What is your minimum order quantity?
A: Our minimum order quantity will vary depending on the product.
3. Q: What is the best way to contact you?
A: You can contact us by email, telephone, or online chat.
