Product Details:
|
| Material: | MC3/MC3+L | Type: | Machining Services |
|---|---|---|---|
| Size: | OEM Accepted | Application: | For Steel Pipes Surface Cutting |
| Product Name: | Tungsten Inserts | Sample: | Available |
| Highlight: | indexable Carbide Threading Inserts,MC3+L indexable threading inserts,MC3 indexable threading inserts |
||

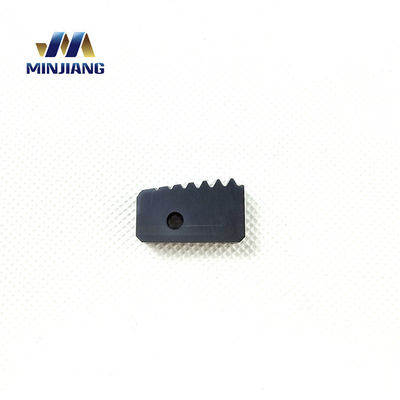

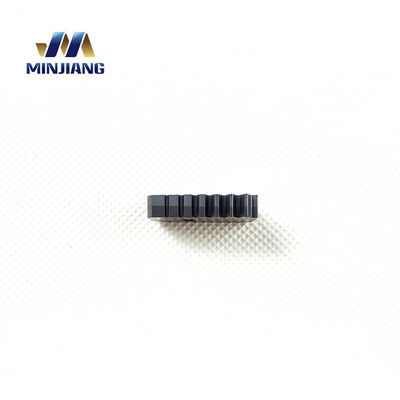

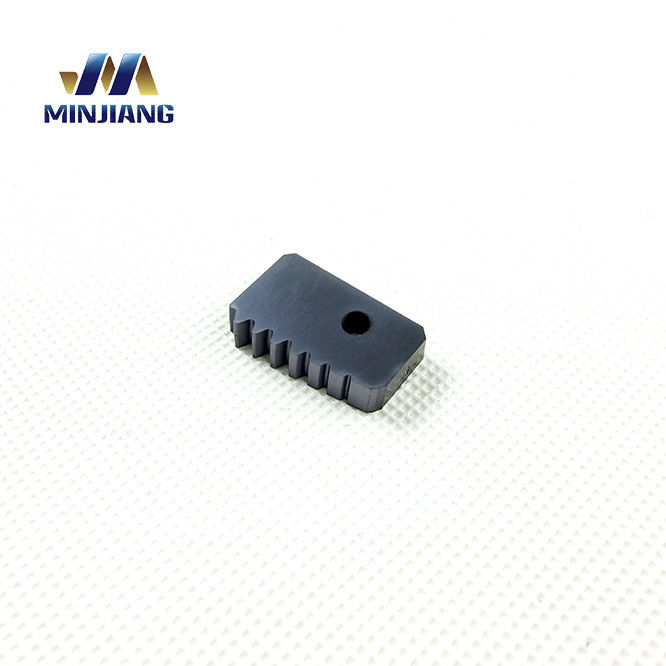

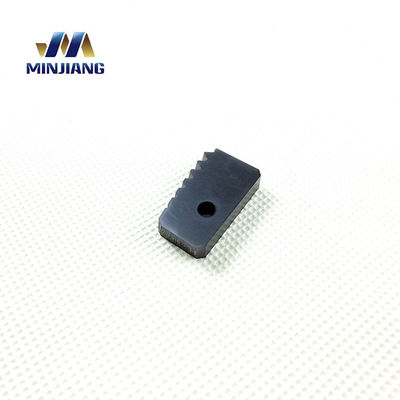

Indexable Inserts Tungsten Carbide Threading Inserts with High Quality
Description
Carbide threading inserts are a type of cutting tool used in machining to create threads in a variety of materials. They are designed to be strong, yet lightweight, and are used in a wide range of industries, including automotive, aerospace, and medical device manufacturing. They are capable of threading a wide range of materials, including steel, aluminum, copper, and titanium, and can produce threads with very tight tolerances. The inserts are made from a combination of tungsten carbide and cobalt and are available in a range of sizes and shapes to suit a variety of threading applications. They are also resistant to wear and breakage, and can be used with a variety of cutting tools to produce threads of different sizes, shapes, and depths. Carbide threading inserts are a cost-effective and efficient solution for creating threads in many materials.
Representative Product Lines
Product Advantages
Materials
The selection of thread cutting insert materials varies depending on the workpiece material to achieve better cutting performance.
Some optional Carbide Grade:
| Metal Grade | performance and use |
|
MC1 |
MC1 exhibits exceptional matrix red hardness and remarkable toughness, making it ideally suited for processing with high-efficiency threading machines. Furthermore, it is perfectly compatible with the threading requirements of oil pipes, casings, and couplings that belong to medium steel grades and secondary high steel grades, encompassing materials like J55, K55, N80, L80. |
| MC2 |
MC2 boasts high matrix strength, excellent red hardness, and good impact resistance. It is suitable for high-efficiency threading machine processing of medium to high steel grade oil pipes, casings, and coupling threads, such as N80 and P110. |
| MC3 |
MC3 boasts good overall mechanical properties in its matrix, along with stable cutting performance. It is suitable for high-efficiency threading machine processing of oil pipes, casings, and coupling threads that belong to low, medium, and secondary high steel grades, such as H40, J55, M65, C75, N80, and similar specifications. |
| P35 |
P35 utilizes a matrix with high strength and excellent red hardness, making it suitable for processing the threads of drill pipes, oil drilling collars, sucker rods, and other related equipment. |
| YT15 |
Depending on the specific application, it can be coated or uncoated, and possesses good red hardness and toughness. It is suitable for use in the manufacturing of specialized chip breakers for thread cutting combs and other cutting tools. |
| S Material |
Exhibits excellent wear resistance and high-temperature red hardness, making it suitable for the internal threading of medium to high alloy steels. |
| Name | Description | Features | Application Areas |
| ISO | ISO Metric Full Profile Thread Insert is a tool with a complete thread profile, designed to meet ISO Metric thread standards. |
Complying with ISO standards ensures that the processed threads have uniform size and precision, and the full-profile design improves processing efficiency. Made of high-quality materials, with high hardness and wear resistance
|
|
| W | Threads specially designed for pipe connections | The tooth angle of Whitworth thread is 55°, which is different from many other thread standards. The rounded top and bottom of the thread can reduce the wear of the thread tool on the top and improve its fatigue resistance. |
|
| TR | 30° Trapezoidal thread | Trapezoidal thread refers to a metric trapezoidal thread with a tooth angle of 30°.Trapezoidal threads are mainly used for transmission, have high strength and rigidity requirements, are not easy to loosen, and have high transmission efficiency. |
|
| ACME | ACME trapezoidal thread cutter is a tool specially designed for processing ACME trapezoidal threads, with specific angle and shape design. |
The ACME thread usually has a tooth angle of 29° (there are other angles such as 30°, but 29° is the most common), and the tooth profile is trapezoidal, wider at the bottom and narrower at the top.
|
|
| UNJ | UNJ thread is a mechanical thread with high strength and durability, especially suitable for applications requiring high strength and reliable connection. |
High strength: Compared with cUNJ threads have higher strength. The external thread bottom of UNJ threads is in an arc shape. This design helps to reduce stress concentration and increase the fatigue life of the threads.
|
|
| NPT | The NPT thread has a tooth angle of 60° and a taper of 1:16. |
NPT threads can provide reliable sealing performance. NPT threads comply with the US National Pipe Thread Standard (ANSI/ASME B1.20.1, etc.) and have good versatility and interchangeability.
|
|
| NPTF | NPTF thread is a thread standard for pipe connections developed by the American National Standards Institute (ANSI), mainly used in North America. |
Sharp tooth shape and short root: higher connection stability and security. NPTF thread has good self-locking performance, can provide greater load-bearing capacity, high tooth shape accuracy, and can prevent leakage without sealing medium.
|
|
At MINJIANG Corporation, we take pride in providing our customers with the highest quality carbide threading inserts. We guarantee that each insert we provide will meet or exceed industry standards for strength, durability, and accuracy. Our inserts feature a special coating that ensures maximum performance and wears resistance in any environment. Our manufacturing process is designed to produce inserts with tight tolerances and precise measurements, ensuring a perfect fit and threading every time. We also guarantee that our inserts are free of defects and will meet the needs of our customers. If any of our products do not meet these standards, we will replace them free of charge. At MINJIANG Corporation, we believe that quality is the most important element of our business and we strive to provide our customers with the best carbide threading inserts available. We are committed to providing our customers with a product that will provide reliable performance and long-lasting service.
A: Yes, we often make customized products.
2. Q: Is the price competitive?
A: Yes, we offer reliable products at good prices.
3. Q: What is the benefit of using Carbide Threading Inserts?
A: Carbide Threading Inserts offer several benefits over traditional threading methods. They are highly precise, provide a superior surface finish, and are capable of producing high thread accuracy with minimal tool wear. Carbide Threading Inserts also require less torque and power to produce threads, reducing cutting time and costs.
