Product Details:
|
| Product Name: | High-Performance Tungsten Carbide Thread Inserts | Type: | Machining Services |
|---|---|---|---|
| Size: | OEM Accepted | Application: | For Steel Pipes Surface Cutting |
| Material: | Tungsten Carbide | Sample: | Available |
| Highlight: | Tungsten Carbide Thread Inserts |
||

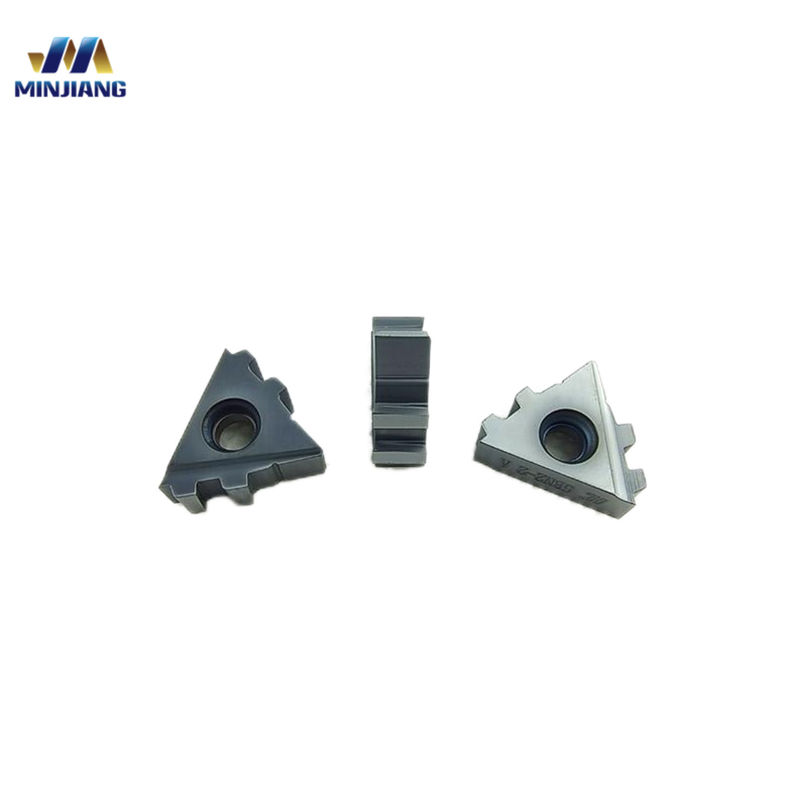

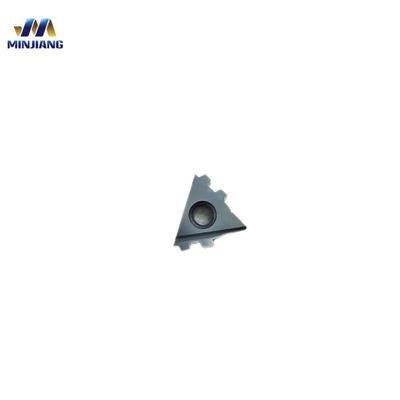

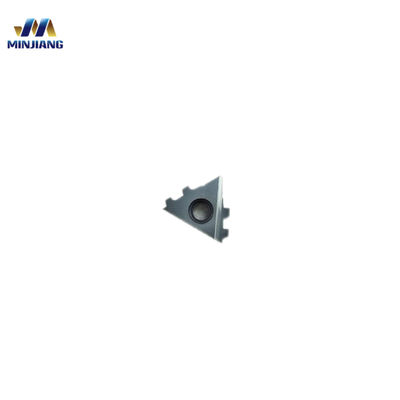

High-Performance Tungsten Carbide Thread Inserts for Precision Machining
Description
Carbide threading inserts find widespread use across diverse industrial applications for the creation of threads in workpieces. Constructed from tungsten carbide, a material celebrated for its exceptional hardness and resistance to wear, these inserts are integral components designed for utilization in specialized tool holders. These holders enable the rotation, cutting, and formation of the desired thread. Available in an array of sizes and shapes, each type of threading insert is purposefully crafted for specific applications. Examples include spiral points, straight flutes, and V-shaped inserts. Regardless of the type, these inserts collectively contribute to precise and consistent threading, ensuring the workpiece attains a uniform appearance. Particularly well-suited for working with hard materials, carbide threading inserts exhibit the capacity to effortlessly cut through such materials with minimal wear. Their versatility extends to high-speed operations, making them a preferred choice for a multitude of industrial applications.
Product Features
Materials
The selection of thread cutting insert materials varies depending on the workpiece material to achieve better cutting performance.
Some optional Carbide Grade:
| Metal Grade | performance and use |
|
MC1 |
MC1 exhibits exceptional matrix red hardness and remarkable toughness, making it ideally suited for processing with high-efficiency threading machines. Furthermore, it is perfectly compatible with the threading requirements of oil pipes, casings, and couplings that belong to medium steel grades and secondary high steel grades, encompassing materials like J55, K55, N80, L80. |
| MC2 |
MC2 boasts high matrix strength, excellent red hardness, and good impact resistance. It is suitable for high-efficiency threading machine processing of medium to high steel grade oil pipes, casings, and coupling threads, such as N80 and P110. |
| MC3 |
MC3 boasts good overall mechanical properties in its matrix, along with stable cutting performance. It is suitable for high-efficiency threading machine processing of oil pipes, casings, and coupling threads that belong to low, medium, and secondary high steel grades, such as H40, J55, M65, C75, N80, and similar specifications. |
| P35 |
P35 utilizes a matrix with high strength and excellent red hardness, making it suitable for processing the threads of drill pipes, oil drilling collars, sucker rods, and other related equipment. |
| YT15 |
Depending on the specific application, it can be coated or uncoated, and possesses good red hardness and toughness. It is suitable for use in the manufacturing of specialized chip breakers for thread cutting combs and other cutting tools. |
| S Material |
Exhibits excellent wear resistance and high-temperature red hardness, making it suitable for the internal threading of medium to high alloy steels. |
| Name | Description | Features | Application Areas |
| ISO | ISO Metric Full Profile Thread Insert is a tool with a complete thread profile, designed to meet ISO Metric thread standards. |
Complying with ISO standards ensures that the processed threads have uniform size and precision, and the full-profile design improves processing efficiency. Made of high-quality materials, with high hardness and wear resistance
|
|
| W | Threads specially designed for pipe connections | The tooth angle of Whitworth thread is 55°, which is different from many other thread standards. The rounded top and bottom of the thread can reduce the wear of the thread tool on the top and improve its fatigue resistance. |
|
| TR | 30° Trapezoidal thread | Trapezoidal thread refers to a metric trapezoidal thread with a tooth angle of 30°.Trapezoidal threads are mainly used for transmission, have high strength and rigidity requirements, are not easy to loosen, and have high transmission efficiency. |
|
| ACME | ACME trapezoidal thread cutter is a tool specially designed for processing ACME trapezoidal threads, with specific angle and shape design. |
The ACME thread usually has a tooth angle of 29° (there are other angles such as 30°, but 29° is the most common), and the tooth profile is trapezoidal, wider at the bottom and narrower at the top.
|
|
| UNJ | UNJ thread is a mechanical thread with high strength and durability, especially suitable for applications requiring high strength and reliable connection. |
High strength: Compared with cUNJ threads have higher strength. The external thread bottom of UNJ threads is in an arc shape. This design helps to reduce stress concentration and increase the fatigue life of the threads.
|
|
| NPT | The NPT thread has a tooth angle of 60° and a taper of 1:16. |
NPT threads can provide reliable sealing performance. NPT threads comply with the US National Pipe Thread Standard (ANSI/ASME B1.20.1, etc.) and have good versatility and interchangeability.
|
|
| NPTF | NPTF thread is a thread standard for pipe connections developed by the American National Standards Institute (ANSI), mainly used in North America. |
Sharp tooth shape and short root: higher connection stability and security. NPTF thread has good self-locking performance, can provide greater load-bearing capacity, high tooth shape accuracy, and can prevent leakage without sealing medium.
|
|
Company Objective
At Minjiang, our dedication revolves around delivering unparalleled products and services of the utmost quality to our valued customers. Our primary objective is the continuous development of cutting-edge and economically efficient solutions tailored to meet the unique needs of our clientele. Understanding the significance of fostering robust customer relationships, we prioritize providing exceptional customer service as an integral part of our commitment. Our team, comprising seasoned professionals, possesses a fervent commitment to assisting our customers in identifying the most suitable products and services at highly competitive prices. We persistently strive to exceed our customers' expectations, consistently aiming to deliver an exceptional customer experience that reflects our unwavering dedication to customer satisfaction.
Related Products
A: Yes, we often make customized products.
2. Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 20-35 days if the goods are not in stock, it is according to quantity.
3. Q: In what environments are carbide threading inserts most effective?
A: Carbide threading inserts excel in production environments where speed and accuracy are crucial. Their ability to swiftly cut threads, coupled with wear resistance, makes them ideal for demanding machining settings.
