Product Details:
|
| Material: | MC3/MC3+L | Type: | Machining Services |
|---|---|---|---|
| Size: | OEM Accepted | Application: | For Steel Pipes Surface Cutting |
| Product Name: | Tungsten Inserts | Sample: | Available |
| Highlight: | ISO Carbide Threading Inserts,Surface Cutting Carbide turning inserts,Steel Pipes Surface Cutting Carbide Threading Inserts |
||

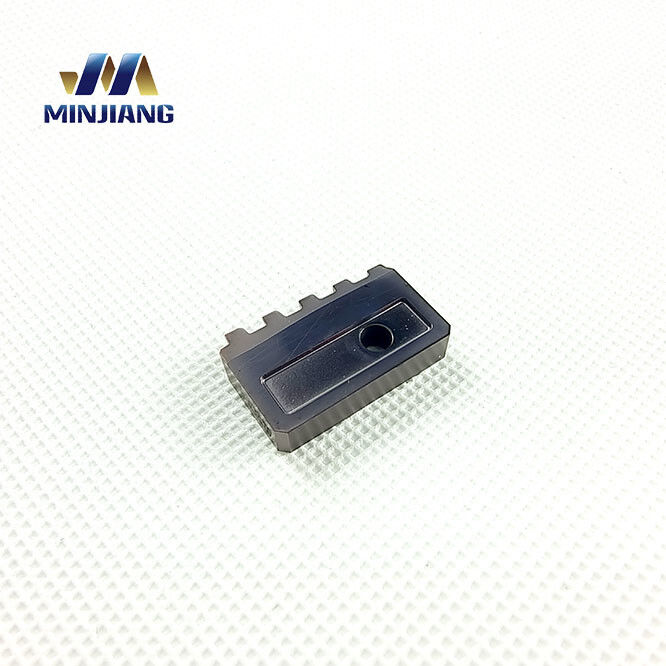

Carbide Threading Inserts Turning Tools
Description
Carbide threading inserts are used in a variety of industrial applications to create threads in a workpiece. These inserts are made from tungsten carbide, a material renowned for its hardness and wear resistance. The inserts are designed to be used in a special tool holder that allows for the insert to rotate, cut, and form the desired thread. Threading inserts come in a variety of sizes and shapes, with each type designed for a specific application. Common threading inserts include spiral points, straight flutes, and V-shaped. All of these inserts allow for precise and consistent threading, ensuring the workpiece has a uniform appearance. Carbide threading inserts are ideal for working with hard materials, as they can easily cut through the material with minimal wear. They can also be used in high-speed operations, making them a great choice for many industrial applications.
Product Features
High Shock Resistance: This refers to the ability of a material to absorb and dissipate energy when subjected to an impact or shock. It is an important factor in determining the durability and reliability of an item, as it is essential to prevent the item from becoming damaged when exposed to sudden force.
Excellent Surface Finish: This refers to the smoothness, texture, and other characteristics of the surface of a manufactured item. It is an important factor in determining the item's appearance and provides a measure of the quality control of the manufacturing process.
Low Friction Coefficient: This refers to the amount of resistance between two surfaces when they are in contact with one another. It is an important factor in determining the ease of movement of the item and its overall performance.
Tight Tolerance Control: This refers to the amount of deviation allowed from a specified design or measurement. It is an important factor in ensuring the accuracy and precision of a manufactured item and helps to ensure that the item meets the necessary design requirements.
Materials
The selection of thread cutting insert materials varies depending on the workpiece material to achieve better cutting performance.
Some optional Carbide Grade:
| Metal Grade | performance and use |
|
MC1 |
MC1 exhibits exceptional matrix red hardness and remarkable toughness, making it ideally suited for processing with high-efficiency threading machines. Furthermore, it is perfectly compatible with the threading requirements of oil pipes, casings, and couplings that belong to medium steel grades and secondary high steel grades, encompassing materials like J55, K55, N80, L80. |
| MC2 |
MC2 boasts high matrix strength, excellent red hardness, and good impact resistance. It is suitable for high-efficiency threading machine processing of medium to high steel grade oil pipes, casings, and coupling threads, such as N80 and P110. |
| MC3 |
MC3 boasts good overall mechanical properties in its matrix, along with stable cutting performance. It is suitable for high-efficiency threading machine processing of oil pipes, casings, and coupling threads that belong to low, medium, and secondary high steel grades, such as H40, J55, M65, C75, N80, and similar specifications. |
| P35 |
P35 utilizes a matrix with high strength and excellent red hardness, making it suitable for processing the threads of drill pipes, oil drilling collars, sucker rods, and other related equipment. |
| YT15 |
Depending on the specific application, it can be coated or uncoated, and possesses good red hardness and toughness. It is suitable for use in the manufacturing of specialized chip breakers for thread cutting combs and other cutting tools. |
| S Material |
Exhibits excellent wear resistance and high-temperature red hardness, making it suitable for the internal threading of medium to high alloy steels. |
| Name | Description | Features | Application Areas |
| ISO | ISO Metric Full Profile Thread Insert is a tool with a complete thread profile, designed to meet ISO Metric thread standards. |
Complying with ISO standards ensures that the processed threads have uniform size and precision, and the full-profile design improves processing efficiency. Made of high-quality materials, with high hardness and wear resistance
|
|
| W | Threads specially designed for pipe connections | The tooth angle of Whitworth thread is 55°, which is different from many other thread standards. The rounded top and bottom of the thread can reduce the wear of the thread tool on the top and improve its fatigue resistance. |
|
| TR | 30° Trapezoidal thread | Trapezoidal thread refers to a metric trapezoidal thread with a tooth angle of 30°.Trapezoidal threads are mainly used for transmission, have high strength and rigidity requirements, are not easy to loosen, and have high transmission efficiency. |
|
| ACME | ACME trapezoidal thread cutter is a tool specially designed for processing ACME trapezoidal threads, with specific angle and shape design. |
The ACME thread usually has a tooth angle of 29° (there are other angles such as 30°, but 29° is the most common), and the tooth profile is trapezoidal, wider at the bottom and narrower at the top.
|
|
| UNJ | UNJ thread is a mechanical thread with high strength and durability, especially suitable for applications requiring high strength and reliable connection. |
High strength: Compared with cUNJ threads have higher strength. The external thread bottom of UNJ threads is in an arc shape. This design helps to reduce stress concentration and increase the fatigue life of the threads.
|
|
| NPT | The NPT thread has a tooth angle of 60° and a taper of 1:16. |
NPT threads can provide reliable sealing performance. NPT threads comply with the US National Pipe Thread Standard (ANSI/ASME B1.20.1, etc.) and have good versatility and interchangeability.
|
|
| NPTF | NPTF thread is a thread standard for pipe connections developed by the American National Standards Institute (ANSI), mainly used in North America. |
Sharp tooth shape and short root: higher connection stability and security. NPTF thread has good self-locking performance, can provide greater load-bearing capacity, high tooth shape accuracy, and can prevent leakage without sealing medium.
|
|
Company Objective
At Minjiang, we are committed to providing our customers with the highest quality products and services. Our aim is to develop the most advanced and cost-effective solutions that cater to the needs of our customers. We recognize the importance of building strong relationships with our customers and providing them with exceptional customer service. Our team of experienced professionals is passionate about helping our customers find the right products and services at the most competitive prices. We will keep striving to go beyond our customers' expectations and to give an exceptional customer experience.
A: Yes, we often make customized products.
2. Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 20-35 days if the goods are not in stock, it is according to quantity.
3. Q: Are the products high quality?
A: Yes. Raw material will be tested before bulk production, and we will check the physical properties, shape, and tolerance for ensuring qualified products before shipping.
