Product Details:
|
| Material: | MC3/MC3+L | Type: | Machining Services |
|---|---|---|---|
| Size: | OEM Accepted | Application: | For Steel Pipes Surface Cutting |
| Product Name: | Tungsten Inserts | Sample: | Available |
| Highlight: | Internal Threading Cutting Carbide Inserts,TC Radial Bearing internal threading inserts,TC Radial Bearing thread cutting carbide inserts |
||

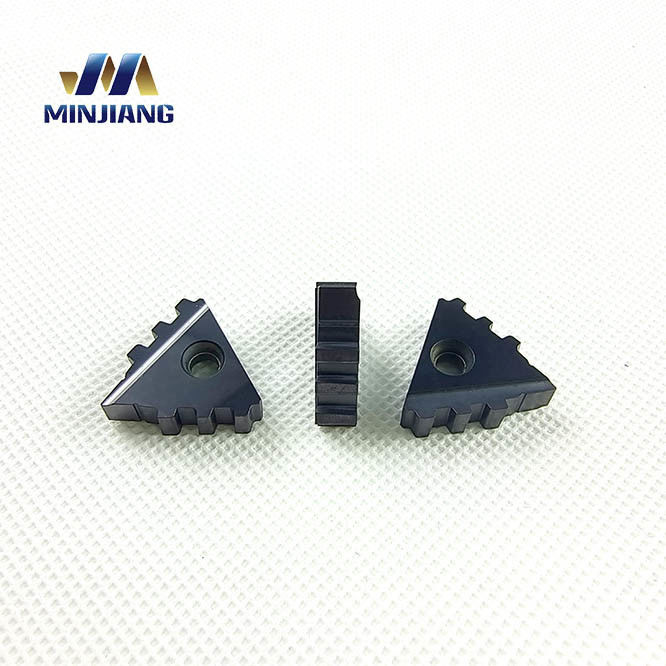

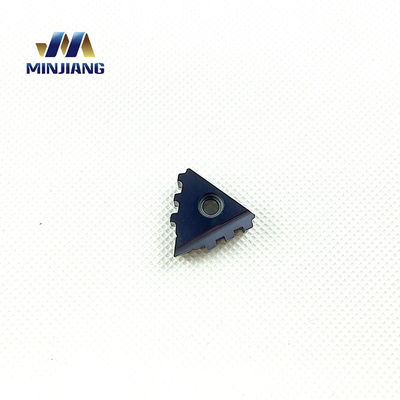

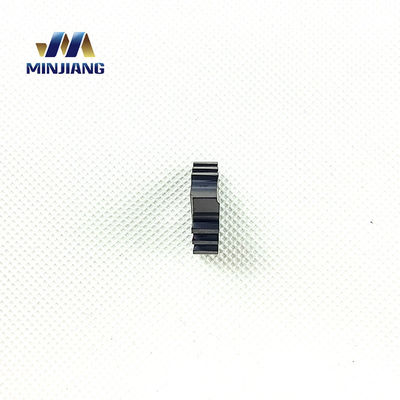

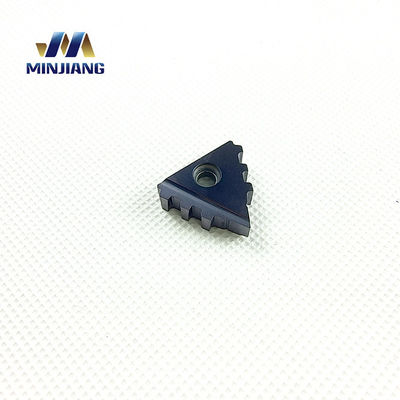

Internal Carbide Threading Insert Cutting Tool for Steel
Description
Carbide Threading Inserts are cutting tool inserts that are used to create internal threads in a variety of materials. They are typically made from tungsten carbide, a very hard and durable material. Unlike cutting with a tap, threading inserts provide greater accuracy and deeper threads in less time. The inserts have a chip-breaking geometry which helps to reduce vibration and heat generated during the cutting process. They are also designed with special angles to ensure the perfect fit of the thread. Carbide threading inserts are available in a wide range of sizes and thread types, making them suitable for use in practically any application. The inserts can also be combined with other cutting tools to produce a variety of threaded patterns. With their long-lasting durability, carbide threading inserts are an ideal choice for any job that requires internal threading.
Related Products
Product Features
High-temperature Stability: The ability of a material to remain unchanged and maintain its properties over a range of temperatures. This includes not only thermal stability but also chemical stability, mechanical stability, and electrical stability.
High-pressure Stability: The ability of a material to remain unchanged and maintain its properties under a range of pressures. This includes not only pressure stability but also chemical stability, mechanical stability, and electrical stability.
High Wear Resistance: The ability of a material to resist wear and tear, including abrasion, corrosion, and erosion, caused by normal usage or the environment.
High Shock Resistance: The ability of a material to resist sudden, intense impacts, such as those caused by heavy machinery or explosions. This includes both shock absorption and impact resistance.
Materials
The selection of thread cutting insert materials varies depending on the workpiece material to achieve better cutting performance.
Some optional Carbide Grade:
| Metal Grade | performance and use |
|
MC1 |
MC1 exhibits exceptional matrix red hardness and remarkable toughness, making it ideally suited for processing with high-efficiency threading machines. Furthermore, it is perfectly compatible with the threading requirements of oil pipes, casings, and couplings that belong to medium steel grades and secondary high steel grades, encompassing materials like J55, K55, N80, L80. |
| MC2 |
MC2 boasts high matrix strength, excellent red hardness, and good impact resistance. It is suitable for high-efficiency threading machine processing of medium to high steel grade oil pipes, casings, and coupling threads, such as N80 and P110. |
| MC3 |
MC3 boasts good overall mechanical properties in its matrix, along with stable cutting performance. It is suitable for high-efficiency threading machine processing of oil pipes, casings, and coupling threads that belong to low, medium, and secondary high steel grades, such as H40, J55, M65, C75, N80, and similar specifications. |
| P35 |
P35 utilizes a matrix with high strength and excellent red hardness, making it suitable for processing the threads of drill pipes, oil drilling collars, sucker rods, and other related equipment. |
| YT15 |
Depending on the specific application, it can be coated or uncoated, and possesses good red hardness and toughness. It is suitable for use in the manufacturing of specialized chip breakers for thread cutting combs and other cutting tools. |
| S Material |
Exhibits excellent wear resistance and high-temperature red hardness, making it suitable for the internal threading of medium to high alloy steels. |
| Name | Description | Features | Application Areas |
| ISO | ISO Metric Full Profile Thread Insert is a tool with a complete thread profile, designed to meet ISO Metric thread standards. |
Complying with ISO standards ensures that the processed threads have uniform size and precision, and the full-profile design improves processing efficiency. Made of high-quality materials, with high hardness and wear resistance
|
|
| W | Threads specially designed for pipe connections | The tooth angle of Whitworth thread is 55°, which is different from many other thread standards. The rounded top and bottom of the thread can reduce the wear of the thread tool on the top and improve its fatigue resistance. |
|
| TR | 30° Trapezoidal thread | Trapezoidal thread refers to a metric trapezoidal thread with a tooth angle of 30°.Trapezoidal threads are mainly used for transmission, have high strength and rigidity requirements, are not easy to loosen, and have high transmission efficiency. |
|
| ACME | ACME trapezoidal thread cutter is a tool specially designed for processing ACME trapezoidal threads, with specific angle and shape design. |
The ACME thread usually has a tooth angle of 29° (there are other angles such as 30°, but 29° is the most common), and the tooth profile is trapezoidal, wider at the bottom and narrower at the top.
|
|
| UNJ | UNJ thread is a mechanical thread with high strength and durability, especially suitable for applications requiring high strength and reliable connection. |
High strength: Compared with cUNJ threads have higher strength. The external thread bottom of UNJ threads is in an arc shape. This design helps to reduce stress concentration and increase the fatigue life of the threads.
|
|
| NPT | The NPT thread has a tooth angle of 60° and a taper of 1:16. |
NPT threads can provide reliable sealing performance. NPT threads comply with the US National Pipe Thread Standard (ANSI/ASME B1.20.1, etc.) and have good versatility and interchangeability.
|
|
| NPTF | NPTF thread is a thread standard for pipe connections developed by the American National Standards Institute (ANSI), mainly used in North America. |
Sharp tooth shape and short root: higher connection stability and security. NPTF thread has good self-locking performance, can provide greater load-bearing capacity, high tooth shape accuracy, and can prevent leakage without sealing medium.
|
|
For over three decades, Minjiang has gained a stellar reputation for offering reliable, dependable products and services. Our focus on quality and innovation has enabled us to be ahead of the curve, with a team of professionals dedicated to providing tailored advice and solutions to suit each customer's unique requirements. We strive to bring value to each customer by utilizing the most advanced technologies and eco-friendly materials with maximum effectiveness. Moreover, our unparalleled customer service ensures a smooth, hassle-free experience every time. With Minjiang, you can always count on receiving a top-notch product and service.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
2. Q: What is the lead time?
A: Lead time can vary depending on the product and quantity ordered but typically ranges from 1-4 weeks.
3. Q: What is the best way to contact you?
A: You can contact us by email, telephone, or online chat.
4. Q: Are the products high quality?
A: Yes. The raw material will be tested before bulk production, and we will check the physical properties, shape, and tolerance for ensuring qualified products before shipping.
