Product Details:
|
| Material: | 100% Virgin Tungsten Carbide | Type: | Machining Services |
|---|---|---|---|
| Size: | OEM Accepted | Application: | For Steel Pipes Surface Cutting |
| Product Name: | Tungsten Inserts | Grade: | Optional |
| Highlight: | High Durability Carbide Threading Inserts,Industrial Carbide Threading Inserts |
||

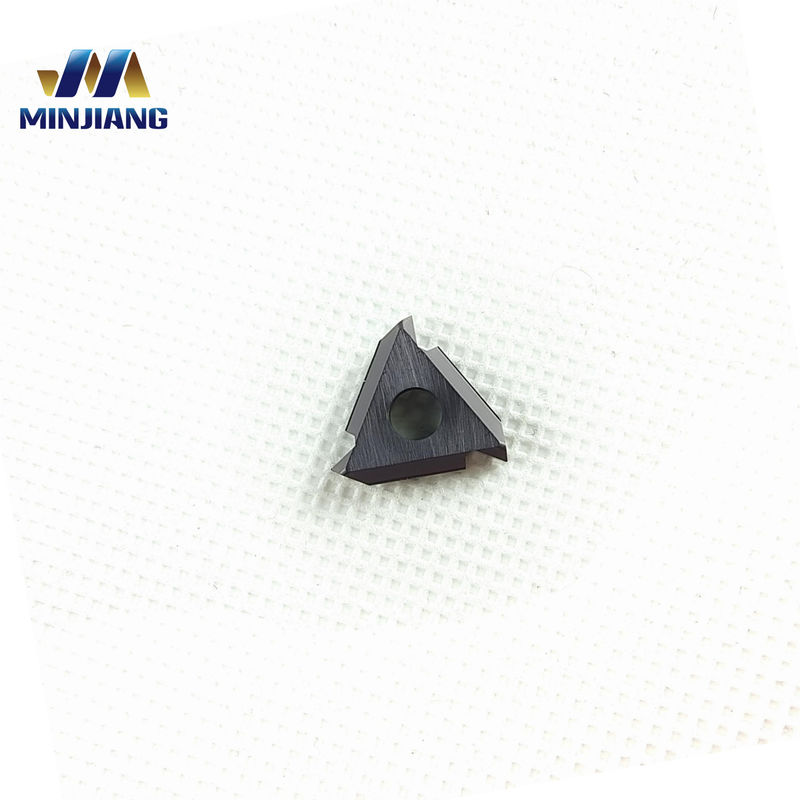

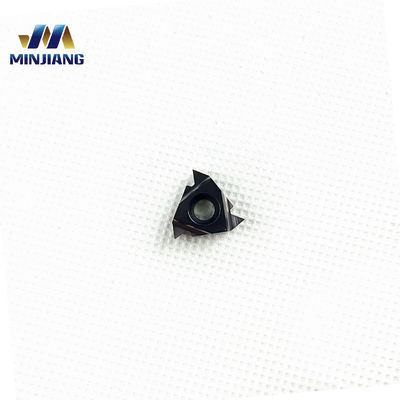

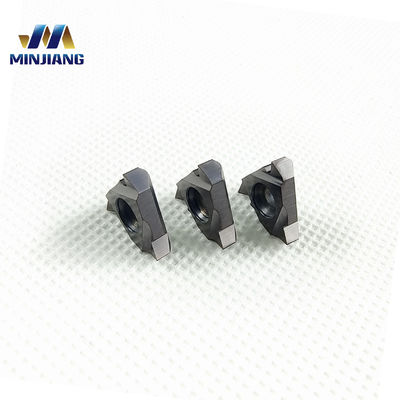

Carbide threading inserts are advanced cutting tools designed for high-precision machining applications. These inserts, crafted from exceptionally hard and durable carbide material, are mounted onto tool holders and used in lathes to efficiently cut threads, grooves, and chamfers in various materials such as cast iron, steel, stainless steel, and nonferrous metals. Renowned for their versatility, carbide threading inserts are ideal for machining complex components like gearbox casings and are indispensable in high-volume production environments due to their consistent performance and long tool life. Their superior cutting edges provide excellent surface finishes and precise thread forms, making them essential for achieving high-quality results in modern manufacturing processes.
Advantage
Materials
The selection of thread cutting insert materials varies depending on the workpiece material to achieve better cutting performance.
Some optional Carbide Grade:
| Metal Grade | performance and use |
|
MC1 |
MC1 exhibits exceptional matrix red hardness and remarkable toughness, making it ideally suited for processing with high-efficiency threading machines. Furthermore, it is perfectly compatible with the threading requirements of oil pipes, casings, and couplings that belong to medium steel grades and secondary high steel grades, encompassing materials like J55, K55, N80, L80. |
| MC2 |
MC2 boasts high matrix strength, excellent red hardness, and good impact resistance. It is suitable for high-efficiency threading machine processing of medium to high steel grade oil pipes, casings, and coupling threads, such as N80 and P110. |
| MC3 |
MC3 boasts good overall mechanical properties in its matrix, along with stable cutting performance. It is suitable for high-efficiency threading machine processing of oil pipes, casings, and coupling threads that belong to low, medium, and secondary high steel grades, such as H40, J55, M65, C75, N80, and similar specifications. |
| P35 |
P35 utilizes a matrix with high strength and excellent red hardness, making it suitable for processing the threads of drill pipes, oil drilling collars, sucker rods, and other related equipment. |
| YT15 |
Depending on the specific application, it can be coated or uncoated, and possesses good red hardness and toughness. It is suitable for use in the manufacturing of specialized chip breakers for thread cutting combs and other cutting tools. |
| S Material |
Exhibits excellent wear resistance and high-temperature red hardness, making it suitable for the internal threading of medium to high alloy steels. |
Thread Profile
| Name | Description | Features | Application Areas |
| ISO | ISO Metric Full Profile Thread Insert is a tool with a complete thread profile, designed to meet ISO Metric thread standards. |
Complying with ISO standards ensures that the processed threads have uniform size and precision, and the full-profile design improves processing efficiency. Made of high-quality materials, with high hardness and wear resistance
|
|
| W | Threads specially designed for pipe connections | The tooth angle of Whitworth thread is 55°, which is different from many other thread standards. The rounded top and bottom of the thread can reduce the wear of the thread tool on the top and improve its fatigue resistance. |
|
| TR | 30° Trapezoidal thread | Trapezoidal thread refers to a metric trapezoidal thread with a tooth angle of 30°.Trapezoidal threads are mainly used for transmission, have high strength and rigidity requirements, are not easy to loosen, and have high transmission efficiency. |
|
| ACME | ACME trapezoidal thread cutter is a tool specially designed for processing ACME trapezoidal threads, with specific angle and shape design. |
The ACME thread usually has a tooth angle of 29° (there are other angles such as 30°, but 29° is the most common), and the tooth profile is trapezoidal, wider at the bottom and narrower at the top.
|
|
| UNJ | UNJ thread is a mechanical thread with high strength and durability, especially suitable for applications requiring high strength and reliable connection. |
High strength: Compared with cUNJ threads have higher strength. The external thread bottom of UNJ threads is in an arc shape. This design helps to reduce stress concentration and increase the fatigue life of the threads.
|
|
| NPT | The NPT thread has a tooth angle of 60° and a taper of 1:16. |
NPT threads can provide reliable sealing performance. NPT threads comply with the US National Pipe Thread Standard (ANSI/ASME B1.20.1, etc.) and have good versatility and interchangeability.
|
|
| NPTF | NPTF thread is a thread standard for pipe connections developed by the American National Standards Institute (ANSI), mainly used in North America. |
Sharp tooth shape and short root: higher connection stability and security. NPTF thread has good self-locking performance, can provide greater load-bearing capacity, high tooth shape accuracy, and can prevent leakage without sealing medium.
|
|
Product Features
Chengdu Minjiang Precision Cutting Tool Co., Ltd is a leading manufacturer of buttress threading inserts in China. Established in 1992, our company has amassed extensive experience in designing and producing cemented carbide inserts, bit nozzles, wear-resistant parts, tungsten rods, and plates. Over the years, we have built a highly skilled and efficient workforce and technical team, dedicated to delivering top-quality products. We cater to both domestic and international markets with a wide range of OEM products, ensuring tailored solutions for our customers. Our commitment to quality is underscored by our ISO9001-2000 certification. We boast a comprehensive production line and an advanced inspection system, featuring equipment such as NC blade blanks and wear part blanks, NC chaser grinders for CNC, optical profile grinders, specialized thread grinders, high-precision Swiss periphery grinders, high-precision surface grinders, universal tool grinders, universal tool maker’s microscopes, and OVH, among other state-of-the-art production and inspection tools. Our dedication to precision and quality has positioned us as a trusted partner in the cutting tool industry, consistently meeting the evolving needs of our clients.
Source Provider
Cost Savings: Buying directly from the manufacturer often eliminates the middleman, leading to lower costs. This can result in substantial savings, especially for bulk purchases.
Quality Assurance: Manufacturers have stringent quality control processes in place. By purchasing directly, you can be assured of receiving high-quality inserts that meet industry standards and specifications.
Customization Options: Manufacturers can offer customized solutions tailored to your specific needs. Whether it's special geometries, coatings, or sizes, direct communication with the manufacturer allows for bespoke orders.
Access to the Latest Technology: Manufacturers are at the forefront of innovation and technology. By purchasing directly, you gain access to the latest advancements and product enhancements, ensuring you use the most efficient and effective tools available.
A: Yes, we often make customized products.
2. Q: Do you provide free samples?
A: We can provide free samples, but do not undertake the freight cost.
3. Q: What is your minimum order quantity?
A: Our minimum order quantity will vary depending on the product.
4. Q: What are carbide threading inserts?
A: Carbide threading inserts are cutting tools made from carbide material, designed to be mounted on tool holders and used in lathes for threading, grooving, and chamfering various materials.
