Product Details:
|
| Material: | MC3/MC3+L | Type: | Machining Services |
|---|---|---|---|
| Size: | OEM Accepted | Application: | For Steel Pipes Surface Cutting |
| Product Name: | Tungsten Inserts | Sample: | Available |
| Highlight: | High Speed Machining Carbide Threading Inserts,High Speed Machining Threading Inserts |
||

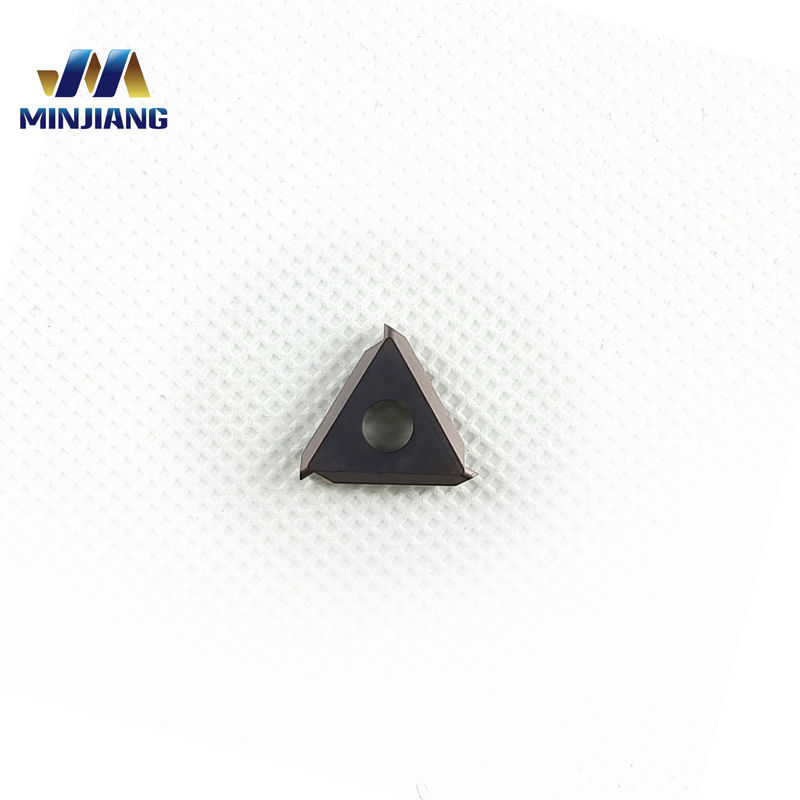

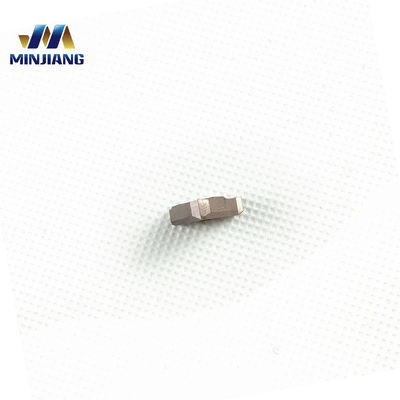

Carbide Threading Inserts for High-Speed Machining
Description
Carbide threading inserts are specifically engineered for high-speed machining, offering unparalleled performance and efficiency. These inserts, crafted from high-grade carbide, are designed to withstand the extreme conditions and demands of high-speed operations. Their exceptional hardness and thermal stability ensure consistent and precise threading even at elevated speeds, making them ideal for applications that require rapid production rates without compromising on quality. Capable of machining a variety of materials including cast iron, steel, stainless steel, and nonferrous metals, carbide threading inserts enhance productivity by reducing cycle times and extending tool life. With their ability to maintain sharp cutting edges and deliver superior surface finishes, these inserts are the preferred choice for manufacturers aiming to optimize their high-speed machining processes.

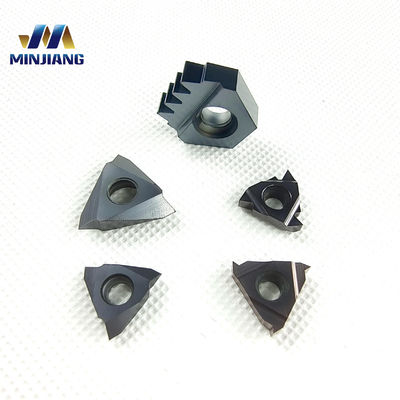

Representative Product Lines
Materials
The selection of thread cutting insert materials varies depending on the workpiece material to achieve better cutting performance.
Some optional Carbide Grade:
| Metal Grade | performance and use |
|
MC1 |
MC1 exhibits exceptional matrix red hardness and remarkable toughness, making it ideally suited for processing with high-efficiency threading machines. Furthermore, it is perfectly compatible with the threading requirements of oil pipes, casings, and couplings that belong to medium steel grades and secondary high steel grades, encompassing materials like J55, K55, N80, L80. |
| MC2 |
MC2 boasts high matrix strength, excellent red hardness, and good impact resistance. It is suitable for high-efficiency threading machine processing of medium to high steel grade oil pipes, casings, and coupling threads, such as N80 and P110. |
| MC3 |
MC3 boasts good overall mechanical properties in its matrix, along with stable cutting performance. It is suitable for high-efficiency threading machine processing of oil pipes, casings, and coupling threads that belong to low, medium, and secondary high steel grades, such as H40, J55, M65, C75, N80, and similar specifications. |
| P35 |
P35 utilizes a matrix with high strength and excellent red hardness, making it suitable for processing the threads of drill pipes, oil drilling collars, sucker rods, and other related equipment. |
| YT15 |
Depending on the specific application, it can be coated or uncoated, and possesses good red hardness and toughness. It is suitable for use in the manufacturing of specialized chip breakers for thread cutting combs and other cutting tools. |
| S Material |
Exhibits excellent wear resistance and high-temperature red hardness, making it suitable for the internal threading of medium to high alloy steels. |
Thread Profile
| Name | Description | Features | Application Areas |
| ISO | ISO Metric Full Profile Thread Insert is a tool with a complete thread profile, designed to meet ISO Metric thread standards. |
Complying with ISO standards ensures that the processed threads have uniform size and precision, and the full-profile design improves processing efficiency. Made of high-quality materials, with high hardness and wear resistance
|
|
| W | Threads specially designed for pipe connections | The tooth angle of Whitworth thread is 55°, which is different from many other thread standards. The rounded top and bottom of the thread can reduce the wear of the thread tool on the top and improve its fatigue resistance. |
|
| TR | 30° Trapezoidal thread | Trapezoidal thread refers to a metric trapezoidal thread with a tooth angle of 30°.Trapezoidal threads are mainly used for transmission, have high strength and rigidity requirements, are not easy to loosen, and have high transmission efficiency. |
|
| ACME | ACME trapezoidal thread cutter is a tool specially designed for processing ACME trapezoidal threads, with specific angle and shape design. |
The ACME thread usually has a tooth angle of 29° (there are other angles such as 30°, but 29° is the most common), and the tooth profile is trapezoidal, wider at the bottom and narrower at the top.
|
|
| UNJ | UNJ thread is a mechanical thread with high strength and durability, especially suitable for applications requiring high strength and reliable connection. |
High strength: Compared with cUNJ threads have higher strength. The external thread bottom of UNJ threads is in an arc shape. This design helps to reduce stress concentration and increase the fatigue life of the threads.
|
|
| NPT | The NPT thread has a tooth angle of 60° and a taper of 1:16. |
NPT threads can provide reliable sealing performance. NPT threads comply with the US National Pipe Thread Standard (ANSI/ASME B1.20.1, etc.) and have good versatility and interchangeability.
|
|
| NPTF | NPTF thread is a thread standard for pipe connections developed by the American National Standards Institute (ANSI), mainly used in North America. |
Sharp tooth shape and short root: higher connection stability and security. NPTF thread has good self-locking performance, can provide greater load-bearing capacity, high tooth shape accuracy, and can prevent leakage without sealing medium.
|
|
Product Features
Company Objective
At Minjiang, we are dedicated to delivering unmatched quality in both our products and services. We stay in tune with the evolving needs of our customers, constantly seeking the latest and most cost-effective solutions. Our customer service team is committed to building lasting relationships with every client, going above and beyond to ensure complete satisfaction by prioritizing their needs and preferences.
Our team of skilled professionals works diligently to offer the most competitive prices, providing exceptional value for our customers. With a steadfast commitment to exceeding expectations, our ultimate goal is to provide a customer-centric experience that stands out in the industry. Minjiang is a symbol of quality and customer satisfaction, consistently striving to set new standards of excellence.
A: Yes, we offer reliable products at good prices.
2. Q: Can carbide threading inserts be customized?
A: Yes, carbide threading inserts can be customized to meet specific requirements, such as unique geometries or special coatings, to optimize performance for particular applications.
3. Q: What is a carbide threading insert, and how does it differ from traditional threading methods?
A: A carbide threading insert is a specialized cutting tool used for crafting internal and external threads. Unlike traditional methods such as tapping and die cutting, carbide threading inserts provide a faster and more precise threading process.
